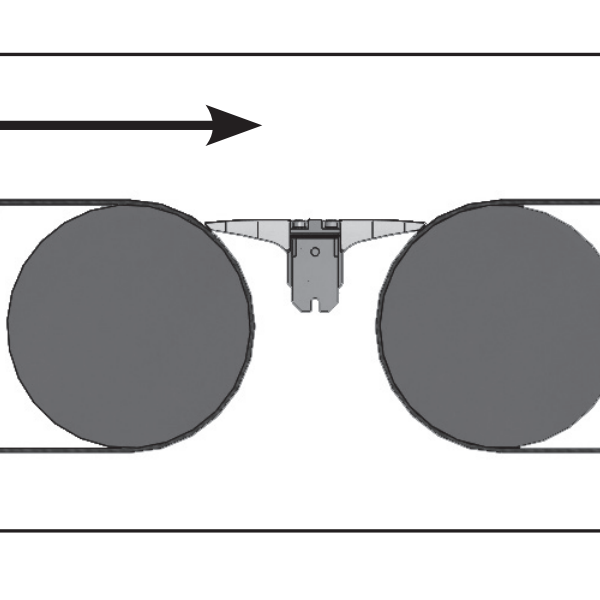

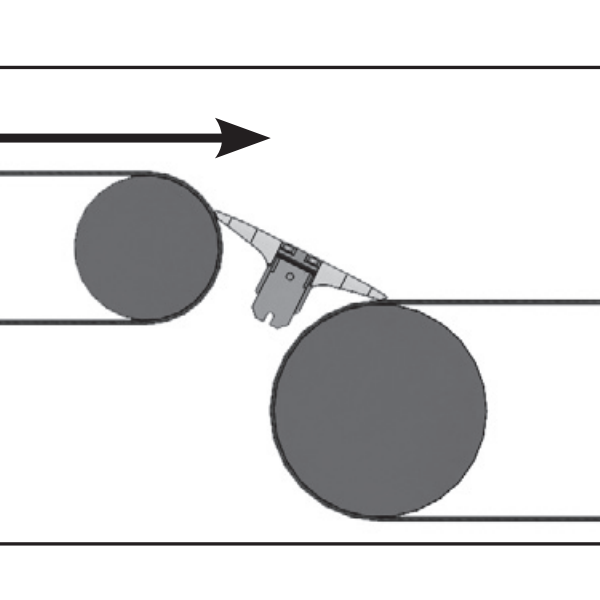

Segmented Transfer Plates suitable for openings from 100mm to 250mm. Flexco segmented transfer plates can help prevent product loss at the transfer point, preventing potential damage to the product and the belt and conveyor structure. Segmented transfer plates provide a smooth transition from one belt to another, from belt to chute, or from belt to structure.

Specifications:

• Suitable for belts up to 60"" (1500 mm) wide and openings from 4"" to 10"" (100 mm to 250 mm).

• Narrow gap option available for smaller pulley-to-pulley gaps from 1.5"" to 3"" (38mm to 75mm).

• Durable HDPE segments lock together and provide a low coefficient of friction, so the product slides easily over the transfer.

• Precision molded segments ensure a precise fit of the transfer in the opening.

• Bright yellow color makes segments easy to check for replacement.

• The two-piece mounting bracket allows for easy installation and removal.
